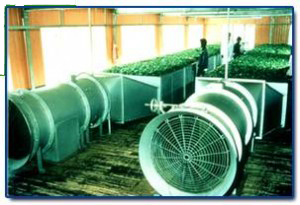

Tea withering reduces the moisture content in tea leaves from 70-80% to about 50% and the leaves become limp and flaccid and suitable for rolling. Fans are essential in this process for the air to be blown in the trough. ICS has developed high efficiency FRP Impellers to reduce the proper amount of moisture from the leaves while still maintaining the taste and fragrance.Available Sizes: 2 ft. to 6 ft.
Number of Blades: 4 to 8
Static Pressure: Up to 1 Inches of WG
Air Flow: Up to 100,000 CFM
Fan RPM: Up to 1440
Operating Temperature Range: – 40ºF to 248ºF
Number of Blades: 4 to 8
Static Pressure: Up to 1 Inches of WG
Air Flow: Up to 100,000 CFM
Fan RPM: Up to 1440
Operating Temperature Range: – 40ºF to 248ºF
Features & Benefits

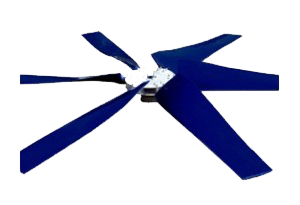

- FRP Impeller
- High efficiency of operation.
- More air with less power.
- Reduced power for same air.
- Optimal operational cost.
- Economical initial cost.
- Impellers are dynamically balanced to ISO – 1940 Grade 6.3 or 2.6 upon request
Standard Material of Construction
- Blades: Fibreglass Reinforced Plastic using Polyester or Epoxy Resins
- Hub Galvanized Double Plate
- Plates: Hot Dipped Galvanised Mild Steel
- Fasteners: Galvanized Steel / SS-304
- Blade Holding Blocks: Cast Aluminum Alloy LM-6, Cast Iron FG-200
- Center Bush: Cast Iron FG-200
Hub: Aluminum
Plates : Cast Aluminum Alloy LM-6
Fasteners : Galvanized Steel / SS-304
Centre Bush : Cast Iron FG-200
